HELIUX FOCUS

Payload for manned aerial inspection, surveying, and mapping.

HELIUX FOCUS is an AI-powered gimbaled system for aerial data collection, utilizing top-tier EO and thermal sensors.

HELIUX FOCUS is an AI-powered gimbaled system for aerial data collection, utilizing top-tier EO and thermal sensors. As the stationary camera captures frames during flight, the AI identifies fixed objects and calculates their coordinates, allowing the gimbal to precisely rotate and capture images of the intended targets, even while the aircraft is moving.

Benefits

Lowest cost gimbaled solution

  • Achieve maximum quality and performance from your flight missions with our gimbaled system for airplanes and helicopters. It offers an exceptional quality-to-price ratio compared to other similar products on the market.

AI-powered quality control and filtering

  • The AI reviews the collected data, ensuring that only the sharpest images with optimal overlap and spatial accuracy are selected, thus providing the highest quality results and eliminating any deteriorated data from the final output.

AI-powered control available

  • During flight, the stationary camera captures frames while the AI identifies fixed objects and computes their coordinates. This allows the gimbal to precisely adjust and capture images of the intended targets, even as the aircraft moves.

Powerzoom lenses compatible

  • Our system is fully compatible with Sony powerzoom lenses, offering enhanced zoom capabilities and versatile imaging options. This compatibility allows users to seamlessly switch between different focal lengths and achieve high-resolution, detailed images from a variety of distances and angles.

Easy mount to various aircraft

  • Our gimbaled aerial data collection system features FAA/EASA and other authority-approved STC mounting options, ensuring compatibility with most popular helicopter and airplane models without requiring any modifications.

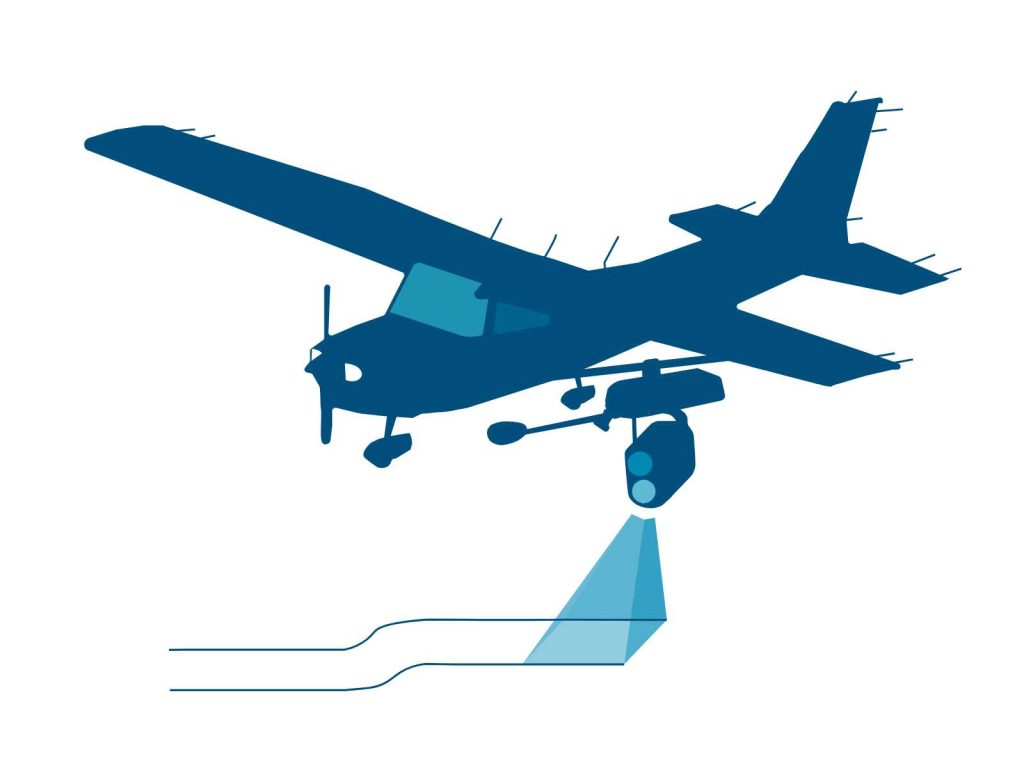

Aerial survey patterns for data collection

These methods optimize the HELIUX FOCUS system’s capabilities for various applications, ensuring comprehensive and high-quality aerial data collection tailored to specific survey needs.

Whisk Broom Pattern: Efficient Large Area Surveys

The Whisk Broom Pattern method enables efficient large area surveys by sweeping back and forth across the survey area. The HELIUX FOCUS system supports combinations of thermal, RGB, and NIR cameras, making it ideal for capturing comprehensive multi-spectral data over expansive regions. This pattern is particularly effective for mapping large terrains and agricultural fields, providing extensive coverage with high precision.

Aerial survey patterns for data collection

Circular Oblique Pattern: Detailed Multi-Faceted Data Collection

The Circular Oblique Pattern employs a circular flight path to capture images using thermal, RGB, and NIR cameras. This method provides detailed and multi-faceted data collection by allowing the cameras to capture oblique angles from all directions. It is especially useful for 3D modeling, infrastructure inspection, and urban planning, offering a thorough visual representation of the survey area from multiple perspectives.

Aerial survey patterns for data collection

POI Follow Pattern: Continuous High-Resolution Data Capture

The POI (Point of Interest) Follow Pattern captures front oblique, nadir, and back oblique data in continuous flight using a single high-resolution camera. This method ensures that the point of interest remains in focus throughout the flight, allowing for detailed monitoring and analysis. It is ideal for targeted inspections, wildlife monitoring, and precise documentation of specific sites, ensuring high-resolution, uninterrupted data capture.

Aerial survey patterns for data collection

Applications

AISPECO systems are designed for multiple applications. Ideal for:

  • City mapping
  • Oil & Gas
  • Railways
  • Power Utilities
  • Forestry

Dimensions

HELIUX FOCUS is an AI-powered gimbaled system for aerial data collection, utilizing top-tier EO and thermal sensors.

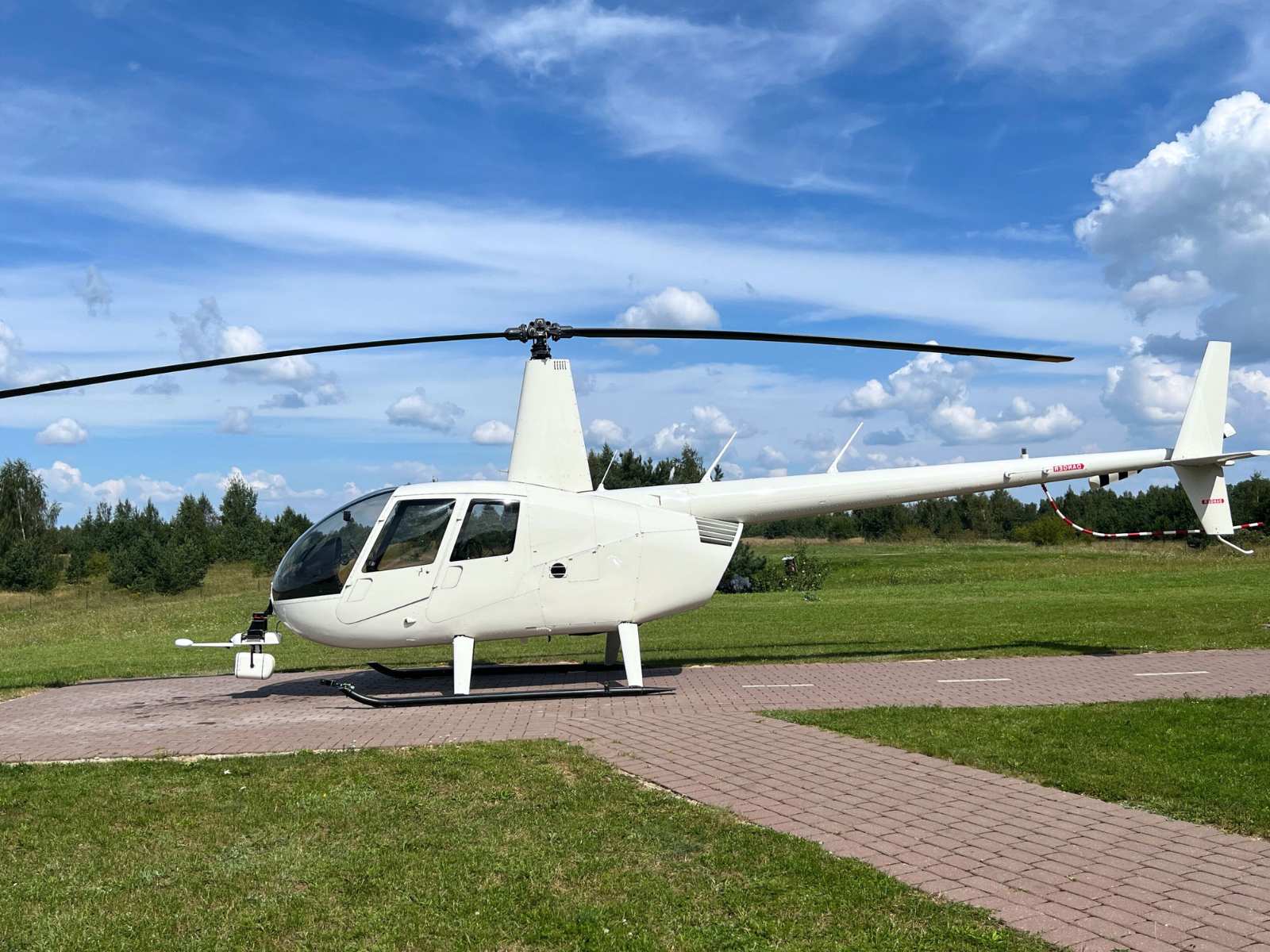

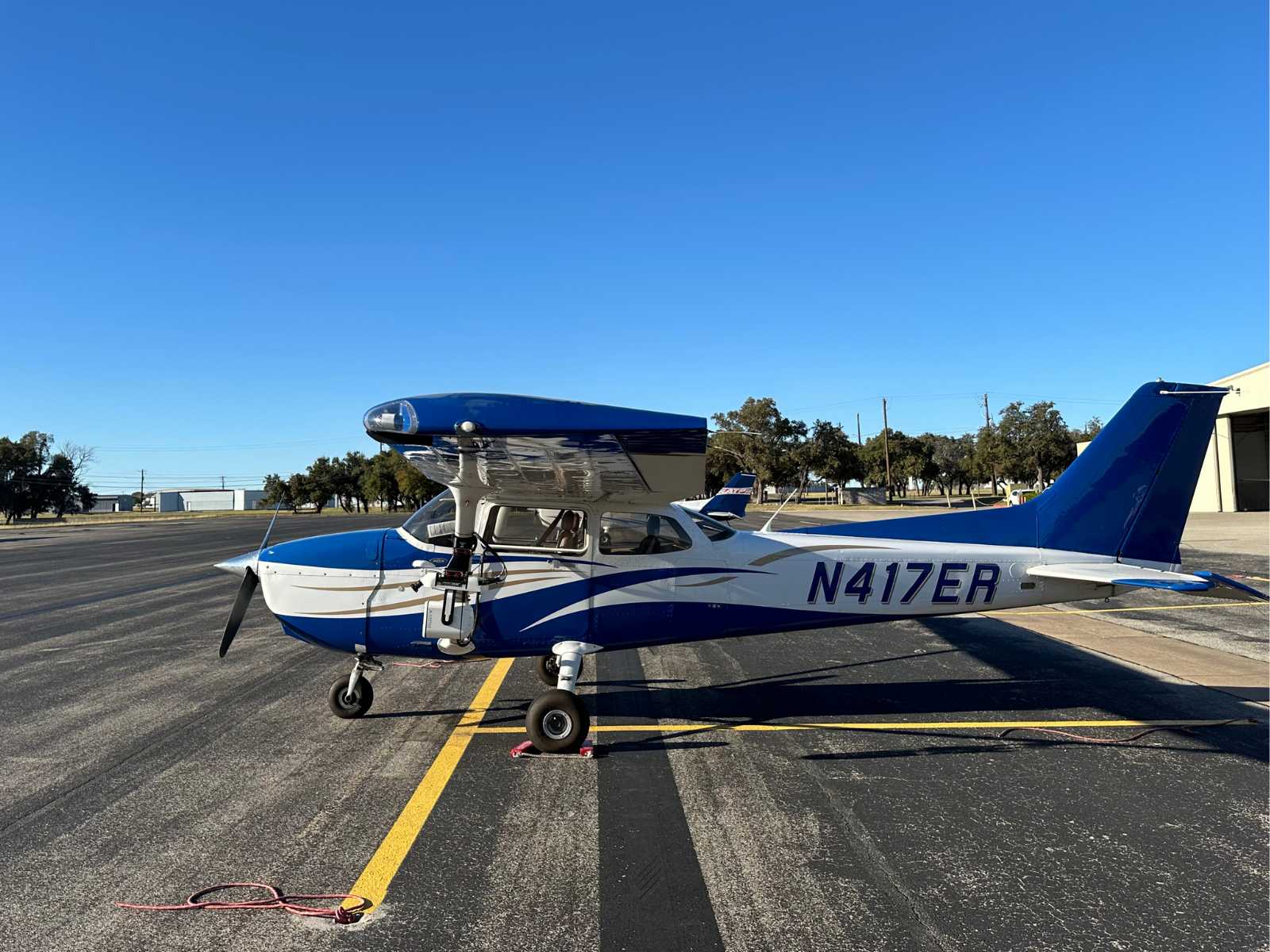

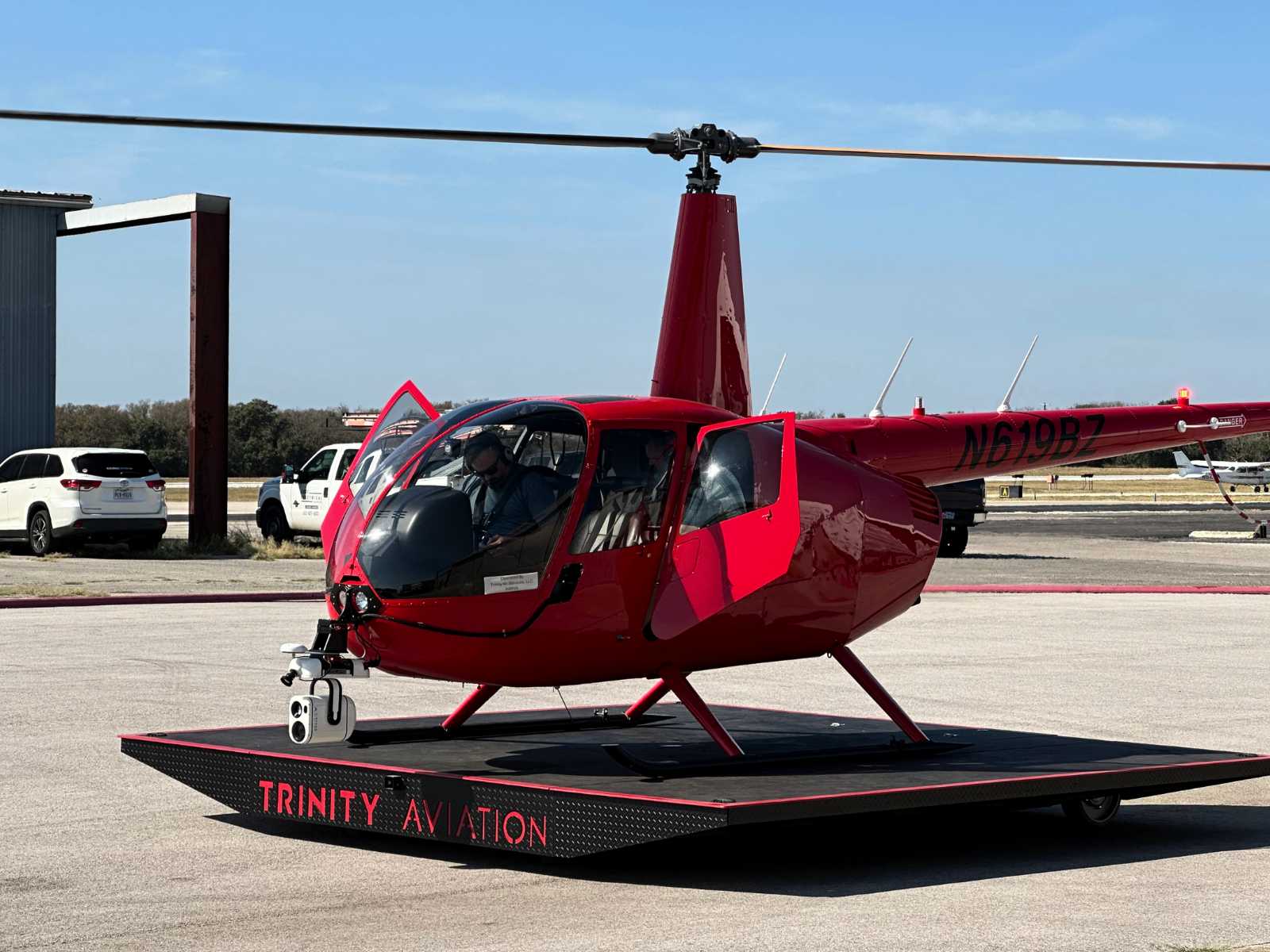

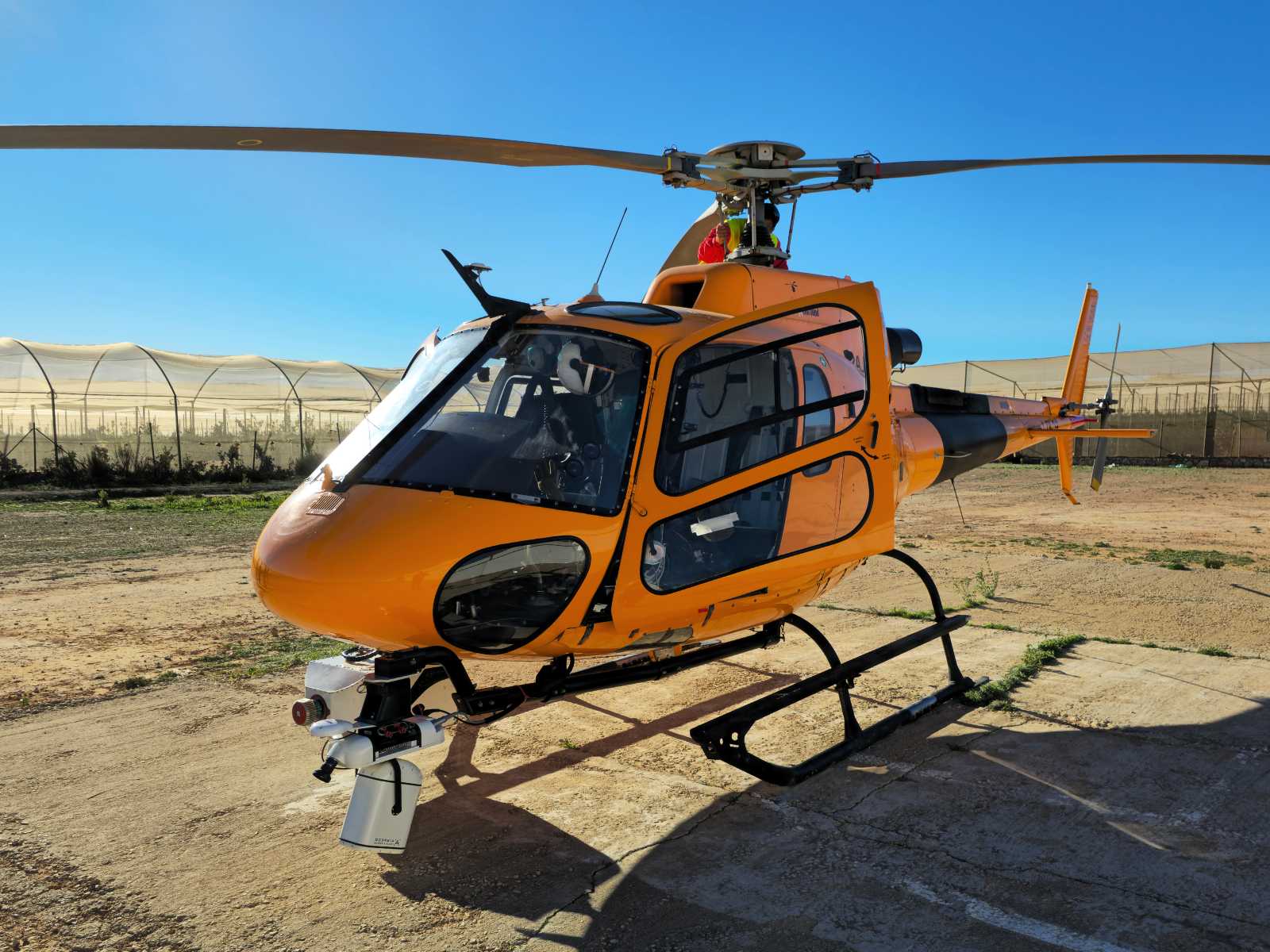

Mounting

  • EASA , FAA approved STC mounting ((nose mount, wing strut, hole in fuselage) options for:

Cessna:

  • 172, 182, 206, 208 Caravan

Diamond:

  • DA42

Robinson:

  • R44, R66

Bell:

  • 206

MD:

  • MD500

Airbus:

  • AS350 family
  • and more...

Compatible sensors

  • Infratec Variocam HEAD HD 900 or similar
  • PhaseOne iXM-150, iXM-GS120 or similar
  • Sony ILX-LR1 or similar
  • Trimble Applanix up to AP+50
